Specifications

Powertrain & Performance

• Motor Power: 13 kW (17.5 HP) peak segmented electric motor.
• Rear Wheel Torque: 385 Nm (284.3 ft-lbs) utilizing a 45T sprocket.
• Top Speed: Up to 62 MPH (approx. 100 km/h).

Speed Modes: Three selectable tiers to regulate throttle aggression:

• Level 1: Up to 15 MPH.
• Level 2: Up to 37 MPH.
• Level 3: Up to 62 MPH.Cooling: Efficient air-cooled system.

Battery & Charging

• Battery Pack: 72V 35Ah Samsung 50S Power-Pack.
• Energy Capacity: 2,520 Wh (2.52 kWh).
• Estimated Range: 30 to 49 miles depending on terrain and rider aggression (can deliver up to 70–75 miles under optimal, low-speed test conditions).
• Charging Time: Approximately 2 hours from 20% to 80% using the standard AC110V/84V 10A charger.

Chassis, Wheels & Suspension

• Frame: Heavy-duty forged aluminum alloy.
• Front Suspension: Adjustable 35 mm closed-cartridge dual-spring fork with 180 mm of travel.
• Rear Suspension: Adjustable closed-cartridge shock with a piggyback reservoir and 80–85 mm of travel.
• Brake System: Full hydraulic heavy-duty disc brakes; 240 mm front disc and 220 mm rear disc.
• Wheel Size: 17-inch spoked aluminum front rim / 14-inch spoked aluminum rear rim.
• Tire Size: 70/100-17 front and 90/100-14 rear knobby off-road tires.
• Drive Chain: 420 chain.

Dimensions & Weight

• Total Weight: 163 lbs (74.5 kg) including the battery.

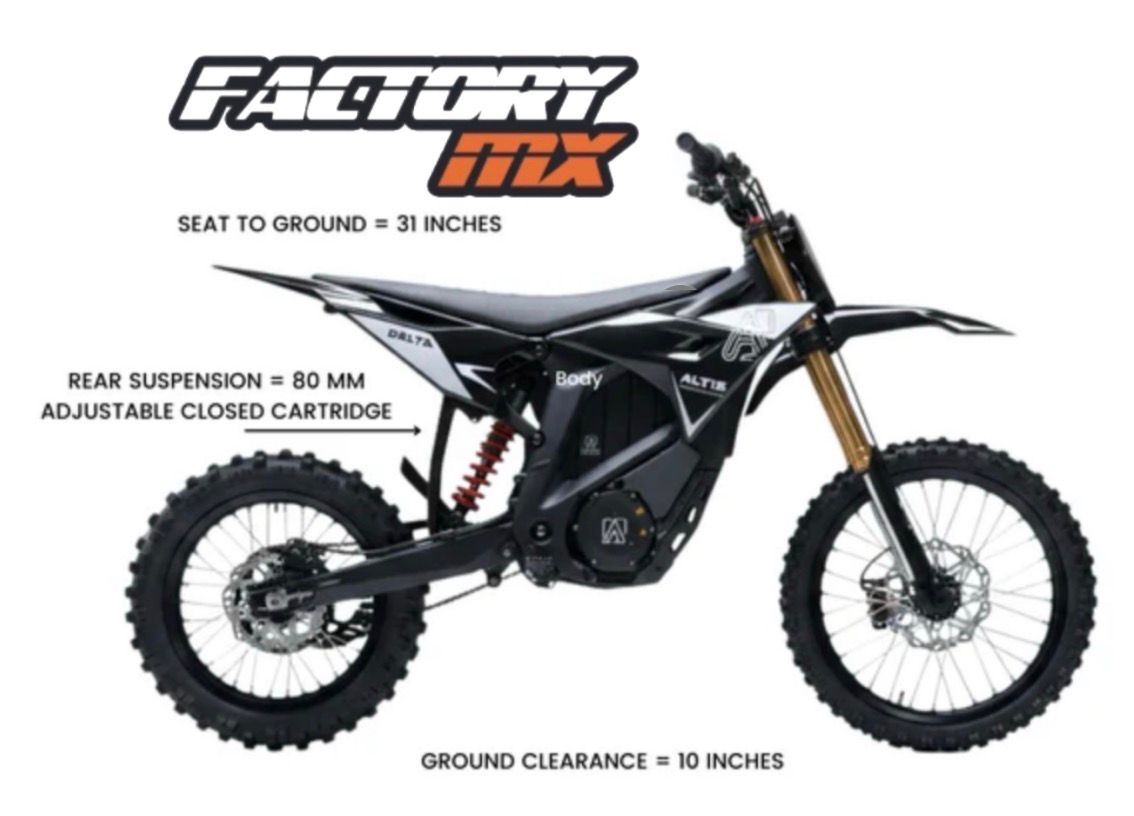

• Seat Height: 31.8 inches (810 mm).
• Wheelbase: 46.8 inches (1,190 mm).
• Ground Clearance: 10.8 inches (275 mm).
• Max Load Capacity: Up to 300 lbs (approx. 136 kg).

Electronics & Features

• Cockpit Display: Simple, sunlight-readable SW102 color TFT display showing essential metrics.
• Throttle: Intuitive twist throttle setup.
